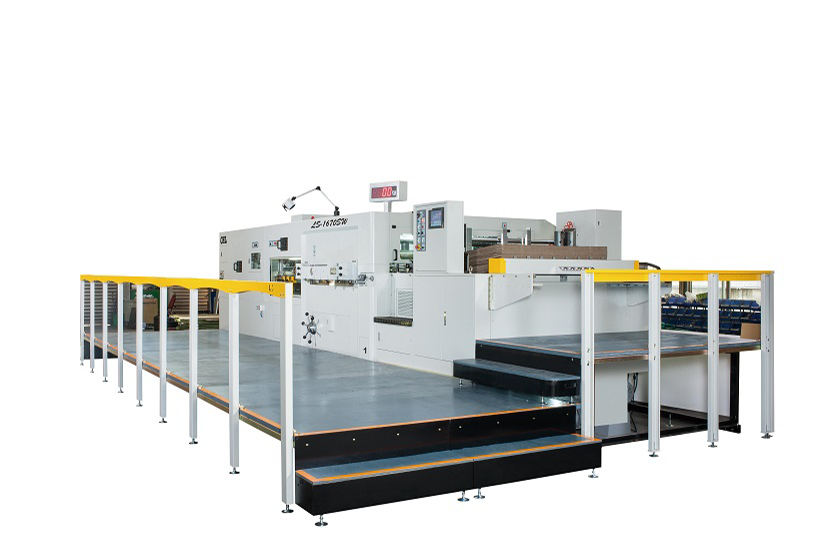

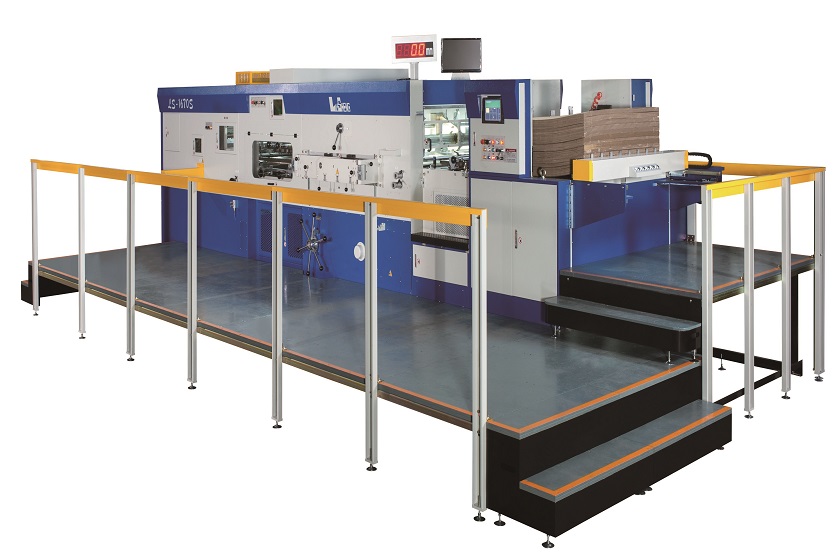

MODEL LS-1670SW
Stock range F~A+B Flute ( 1~8 mm )
Maximum sheet size 1670 x 1200 mm
Inner chase size 1650 x 1180 mm
Minimum sheet size 600 x 400 mm
Maximum operational pressure 400 tons
Maximum speed 5000 sheet/hour (depends complex of die mold and paper's condition)
Weight of machine 36 tons
Power 40 HP





Feeder

  • The feeder with the suction pump makes curved paper smooth. By top-load and bottom-feed, feeding structure feeds paper successively and operates easily.
  • High friction feeding wheels prevent damage to the printed paper.
  • Mechanical transmission system achieves accurate paper infeed.
  • The front stop at infeed end can be adjusted vertically to meet paper sheets, assuring the maximum stability of paper infeed motions.
  • The hydraulic powered feeding table will make feeding corrugated board easy, with no more heavy lifting for the operator. (opt.)

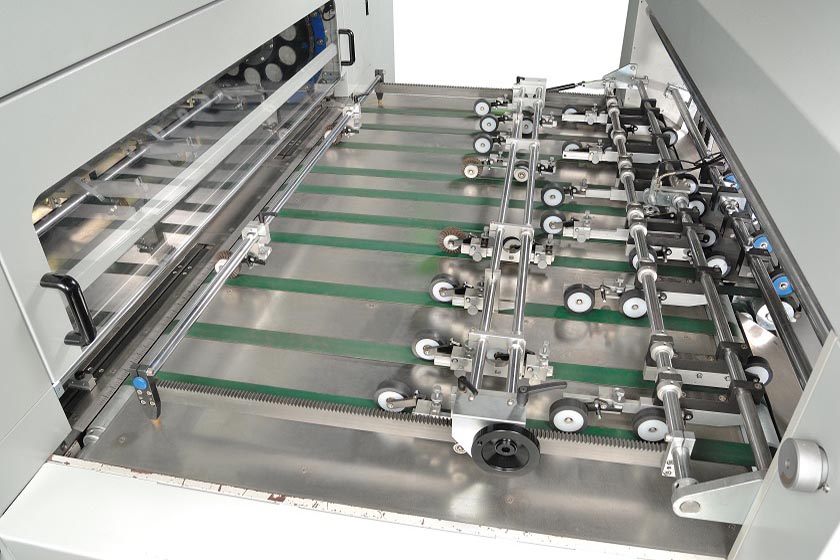

Positioning Mechanism

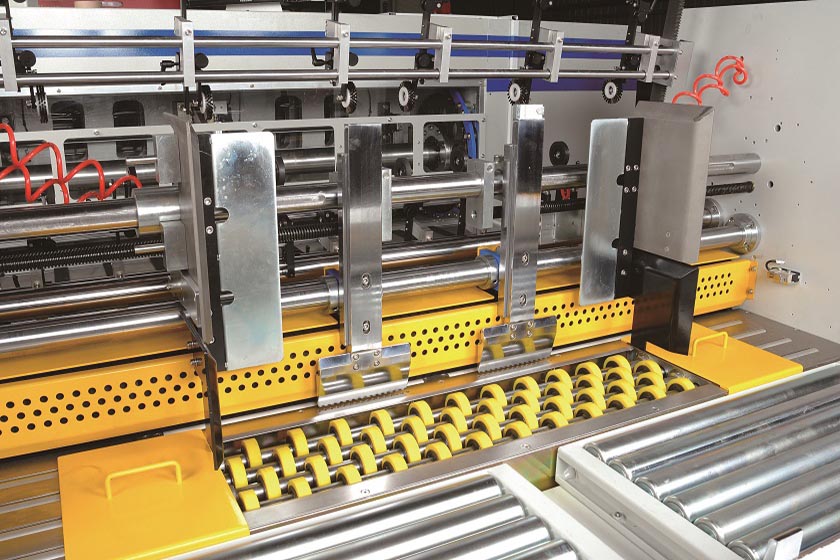

  • The mechanism uses handwheel for adjustment at a time without a need to individually adjust paper pressure wheel.
  • Specially designed paper outfeed wheels accommodate various paper and, is easy to adjust.
  • This improved in-feed system will provide very tight register tolerance. It is able to handle die cutting on not only corrugated board but also on printed board without a register problem.
  • Specially designed roller system easily processes various thicknesses of paper and corrugated board.
  • Special design side guide which is suitable for various thicknesses of paper and corrugated board; accurate and easy to adjust.

Die Cutting Sataion

  • The easy setup system and center-line die register system will cut down the make-ready time dramatically.

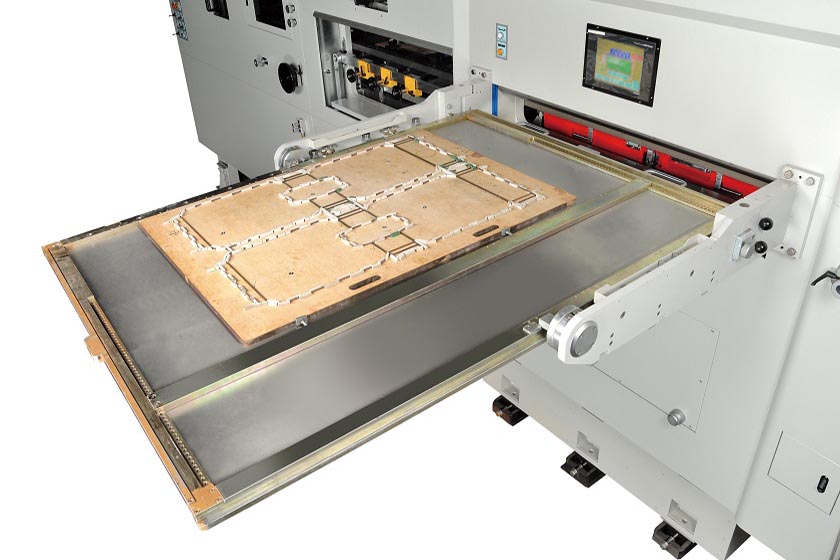

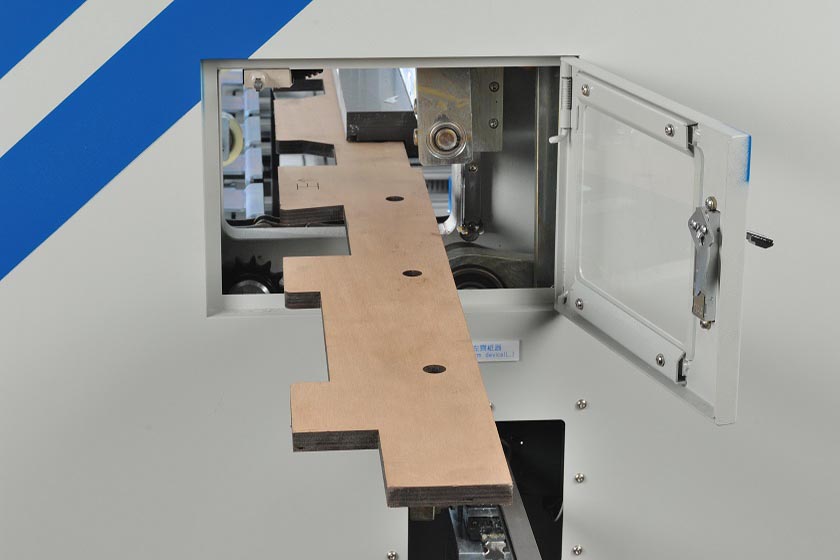

  • Safe die cutting frame design is easily installed and dismantled. Rotation dies frame design allows easy replacement of dies.
  • Bottom mold plate can unload and reserve the cutting mold for next time use.

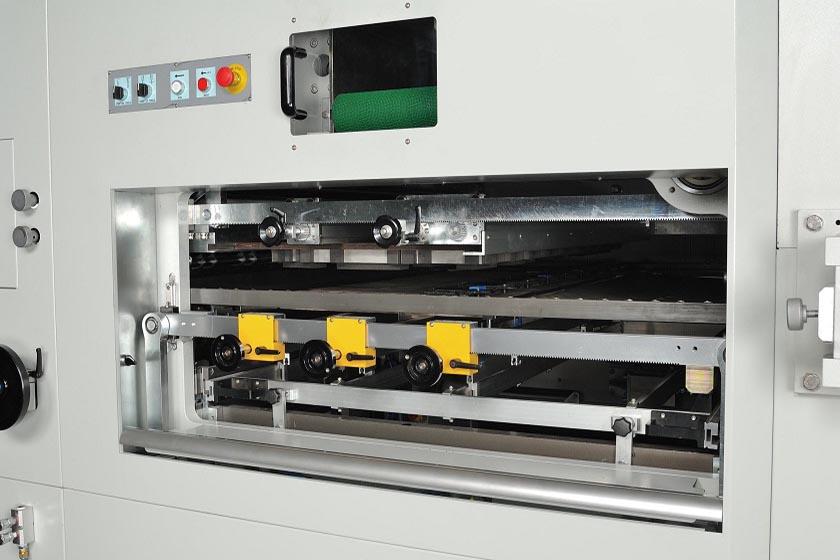

Stripping Mechanism

  • High-efficiency 3-layer stripping mechanism combined with male and female board strip completely.
  • Coordinates with the cutting station, the structure with no frame can be adjusted fast and accurately.
  • Top unit can be disengaged when not in use.

Paper Collection Station

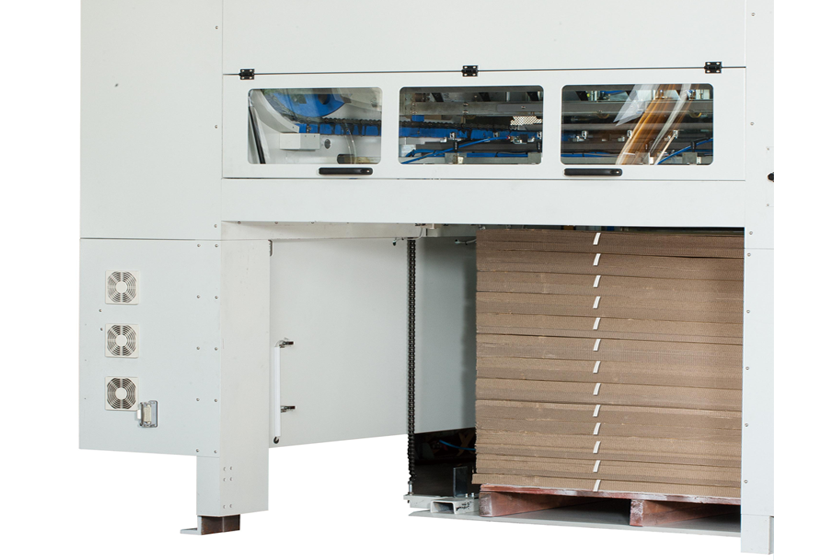

  • Non-stop delivery allows changing of pallets without interrupting the running job, saving time.
  • Bottom blowing air operated paper aligning design ensures smooth stacking of paper.
  • Paper counter with tape inserter for easy counting and effortless packing.
  • High efficiency conveyor system allows longer machine running time and maximum production.
